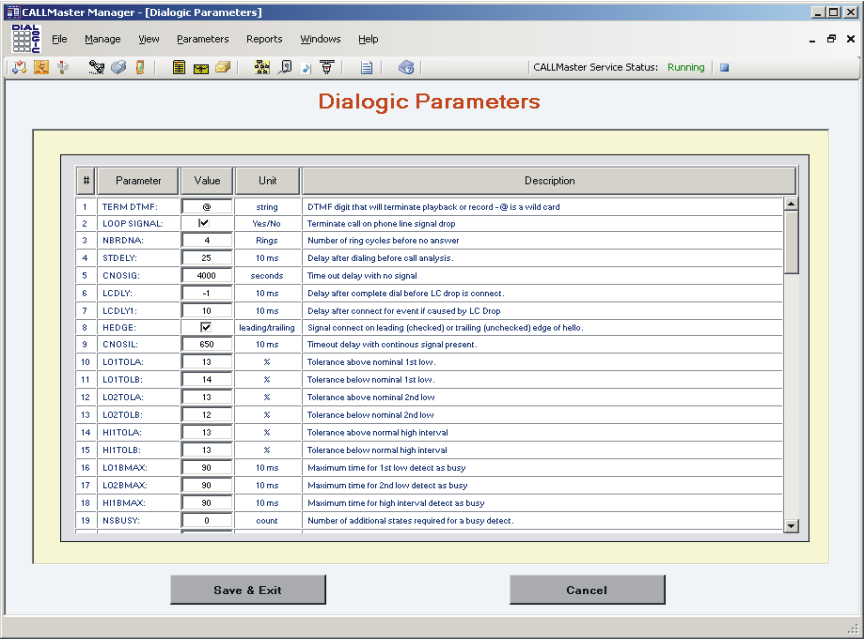

To view/change Dialogic Parameters, select CALLMaster Manager | Parameters | Dialogic.
Dialogic Parameters 1 thru 19
| Parameter: | TERM_DTMF |
| Description: | Specifies a single digit that will terminate the I/O function. |
| Default: | @ (any digit) |
| Range: | @, 0-9, a-d, * and # |
| Usage: | The TERM_DTMF specifies in ASCII a single digit that will terminate the I/O function when the digit is received. The character @ means ‘any digit’. This is a setting you should probably not change. Characters other than @ in this field can cause many touch-tones to not be recognized, and your system will not react to touch-tone input. |
| Parameter: | LOOP_SIGNAL |
| Description: | Terminate on loop signal drop. |
| Default: | 1 |
| Range: | 1 (yes) / -1 (no) |
| Usage: | Specifies whether CALLMaster should hang up if the Dialogic driver reports a loop current drop. In other words, if someone hangs up during a call, and the Dialogic board sends a loop current drop (disconnect signal), should CALLMaster hang up? Toggle choices with the drop down list between ‘Yes’ and ‘No.’ |
| Parameter: | NBRDNA |
| Description: | Number of ring cycles before no answer |
| Default: | 4 |
| Range: | 1-9 |
| Usage: | Number of rings before detecting no answer. The number of single or double rings to wait before returning a ‘no answer’ event during call progress analysis. |
| Parameter: | STDELY |
| Description: | Delay after dialing before call analysis begins |
| Default: | 25 |
| Range: | 1-99 units (10ms per unit) |
| Usage: | The delay after dialing has been completed and before starting analysis for SIT Detection, Positive Answering Machine Detection, Positive Voice Detection, and for Cadence Detection under basic Call Progress Analysis. |
| Parameter: | CNOSIG |
| Description: | Time out delay when no signal detected |
| Default: | 4000 |
| Range: | 1-9999 |
| Usage: | The maximum length of silence (no signal) allowed immediately after STDELY period. If exceeded, Call Progress terminates with a CA_NORNG (no ring back detected). |
| Parameter: | LCDLY |
| Description: | Delay after dial complete before LC drop is connect |
| Default: | -1 |
| Range: | 1-99 |
| Usage: | The delay after dialing has been completed and before beginning Loop Current Detection. Setting this as -1 disables Loop Current Detection. |
| Parameter: | LCDLY1 |
| Description: | Delay after connect for event if caused by loop current drop |
| Default: | 10 |
| Range: | 1-99 |
| Usage: | The delay after Loop Current Detection detects a transient drop in loop current and before Call Progress Analysis returns a CA_CONN (connect) to the application (CALLMaster). |
| Parameter: | HEDGE |
| Description: | Signal connect on leading or trailing edge of hello |
| Default: | 1 |
| Range: | 1-2 (1 - Rising Edge (immediately after connect); 2 - at end of salutation) |
| Usage: | The point at which a connect will be returned to the application (CALLMaster). To obtain the duration of a salutation in the CAR ANSRSIZE field, you must enable the answer size capability by setting this field to the default (falling edge). You must also set the INTFLG and ANSRDGL fields. Note that the answer size is not provided when PAMD is enabled. |
| Parameter: | CNOSIL |
| Description: | Time-out delay when continuous signal present |
| Default: | 650 |
| Range: | 1-999 |
| Usage: | The maximum length of the first or second period of nonsilence allowed. If exceeded, a CA_NORNG (no ring back) is returned |
| Parameter: | LO1TOLA |
| Description: | Tolerance above nominal 1st low, in percent |
| Default: | 13 |
| Range: | 1-99 |
| Usage: | Percent acceptable positive deviation of short low signal. |
| Parameter: | LO1TOLB |
| Description: | Tolerance below nominal 1st low, in percent |
| Default: | 13 |
| Range: | 1-99 |
| Usage: | Percent acceptable negative deviation of short low signal. |
| Parameter: | LO2TOLA |
| Description: | Tolerance above nominal 2nd low, in percent |
| Default: | 13 |
| Range: | 1-99 |
| Usage: | Percent acceptable positive deviation of long low signal. |
| Parameter: | LO2TOLB |
| Description: | Tolerance below normal 2nd low, in percent |
| Default: | 13 |
| Range: | 1-99 |
| Usage: | Percent acceptable negative deviation of long low signal. |
| Parameter: | HI1TOLA |
| Description: | Tolerance above normal high interval, in percent |
| Default: | 13 |
| Range: | 1-99 |
| Usage: | Percent acceptable positive deviation of high signal. |
| Parameter: | HI1TOLB |
| Description: | Tolerance below normal 1st log, in percent |
| Default: | 13 |
| Range: | 1-99 |
| Usage: | Percent acceptable negative deviation of high signal. |
| Parameter: | LO1BMAX |
| Description: | Maximum time for 1st low detect as busy |
| Default: | 90 |
| Range: | 1-99 |
| Usage: | Maximum interval for short low for busy. |
| Parameter: | LO2BMAX |
| Description: | Maximum time for 2nd low detect as busy |
| Default: | 90 |
| Range: | 1-99 |
| Usage: | Maximum interval for long low for busy. |
| Parameter: | HI1BMAX |
| Description: | Maximum time for high interval detect as busy |
| Default: | 90 |
| Range: | 1-99 |
| Usage: | Maximum interval for first high for busy. |
| Parameter: | NSBUSY |
| Description: | Number of additional states required for busy detect |
| Default: | 0 |
| Range: | -9 to 9 |
| Usage: | The number of nonsilence periods in addition to NBRDNA to wait before returning a CA_BUSY (busy signal). Negative values are valid here. |
